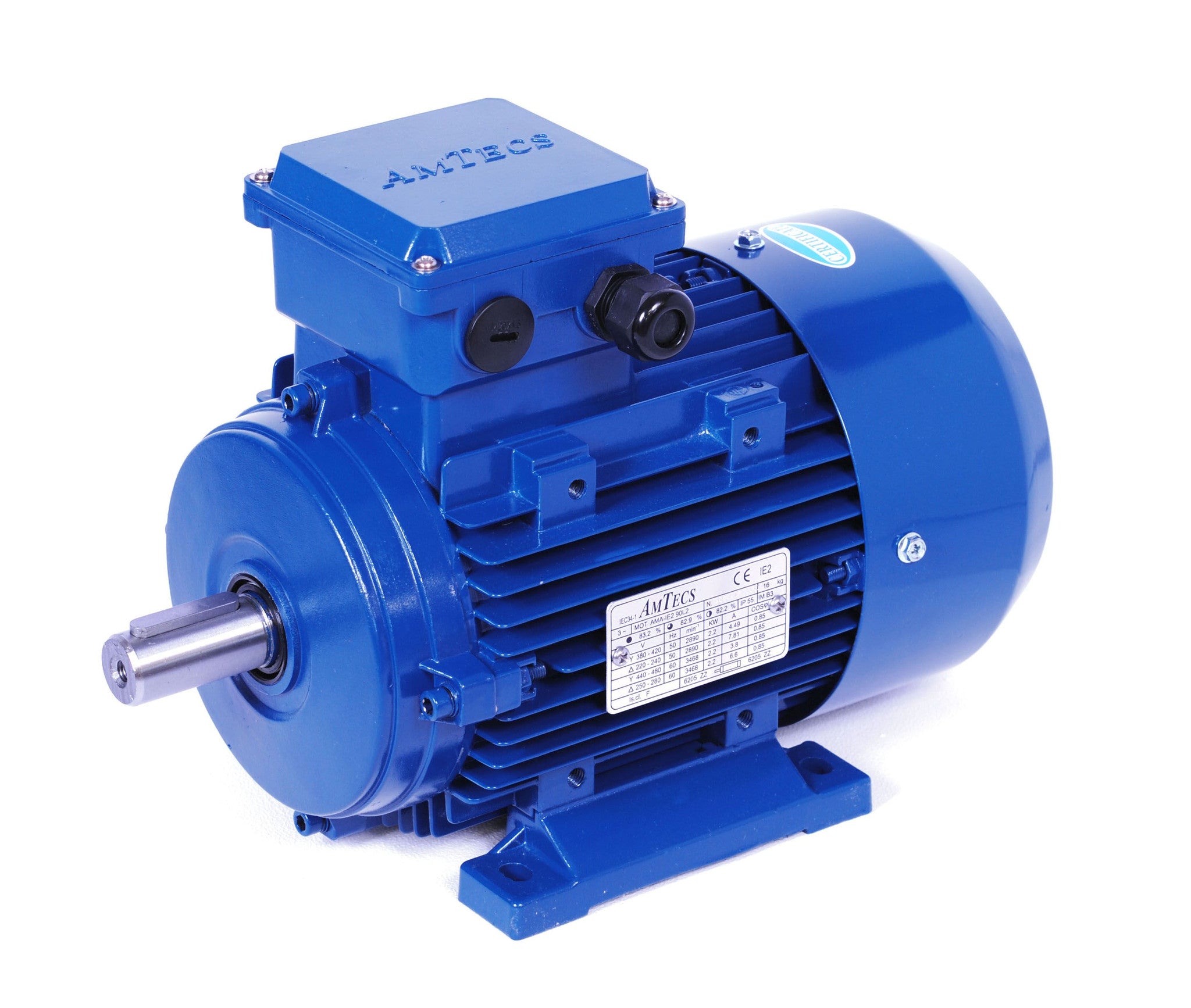

0.55kW (0.75hp) Three Phase Motor 4 Pole (1500RPM) 71 Frame (INCREASED OUTPUT)
Description
Type: |
Three Phase IE2 Efficiency Motors |
Power: |
0.55kW (0.75hp/550 Watt) |
Speed: |
4 Pole (1500 RPM) |
Construction: |
High Quality Aluminium Construction (Cast Iron Construction available on request) |
Efficiency: |
IE2 (In line with ECO Design Rule 2019/1781/) |
Voltage: |
230/400V 3Ph 50Hz (Also suitable for use at 60Hz) |
Shaft Diameter: |
14mm |
Shaft Length: |
30mm |
Keyway: |
5mm |
Frame Size: |
71 Frame (from base of foot to centre of shaft= 71mm) |
Warranty Period |
12 Months |
Other Features |
Multi-Mount (Removable Feet) allowing orientation of Terminal Box to be changed. High Quality NSK Bearings Made to IEC Standards |
Other Services (Price on Request) |
Shaft Modifications Flange Modifications Special Voltages Thermistors Fitting Service Anti-Con Heaters Fitting Service Increased IP Rating
** Please contact us for any other requirements you may have. |
