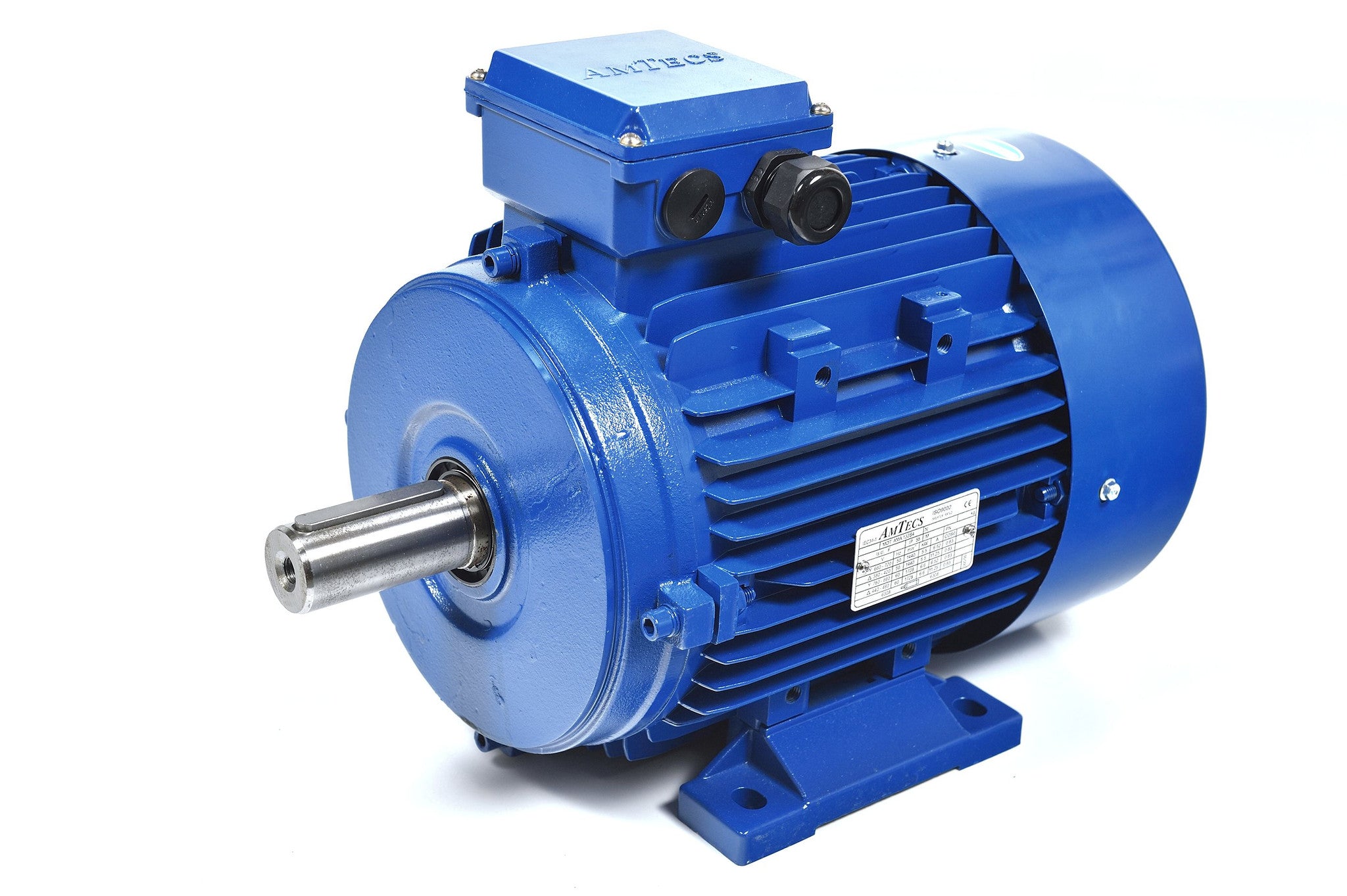

Please click on the image to enlarge
Get A Call Back!
We try to respond to all queries within one hour during office hours.
4.0kW (5.5hp) Three Phase Motor 2 Pole (3000RPM) 100 Frame (INCREASED OUTPUT)
Description
Type: |
Three Phase IE3 Efficiency Motors |
Power: |
4.0kW (5.5hp/4000 Watt) |
Speed: |
2 Pole (3000 RPM) |
Construction: |
High Quality Aluminium Construction (Cast Iron Construction available on request) |
Efficiency: |
IE3 (In line with ECO Design Rule 2019/1781/) |
Voltage: |
400/690V 3Ph 50Hz (Also suitable for use at 60Hz) (230/400V Version available on request) |
Shaft Diameter: |
28mm |
Shaft Length: |
60mm |
Keyway: |
8mm |
Frame Size: |
100 Frame (from base of foot to centre of shaft= 100mm) |
Warranty Period |
12 Months |
Other Features |
Multi-Mount (Removable Feet) allowing orientation of Terminal Box to be changed. High Quality NSK Bearings Made to IEC Standards |
Other Services (Price on Request) |
Shaft Modifications Flange Modifications Special Voltages Thermistors Fitting Service Anti-Con Heaters Fitting Service Increased IP Rating
** Please contact us for any other requirements you may have. |
