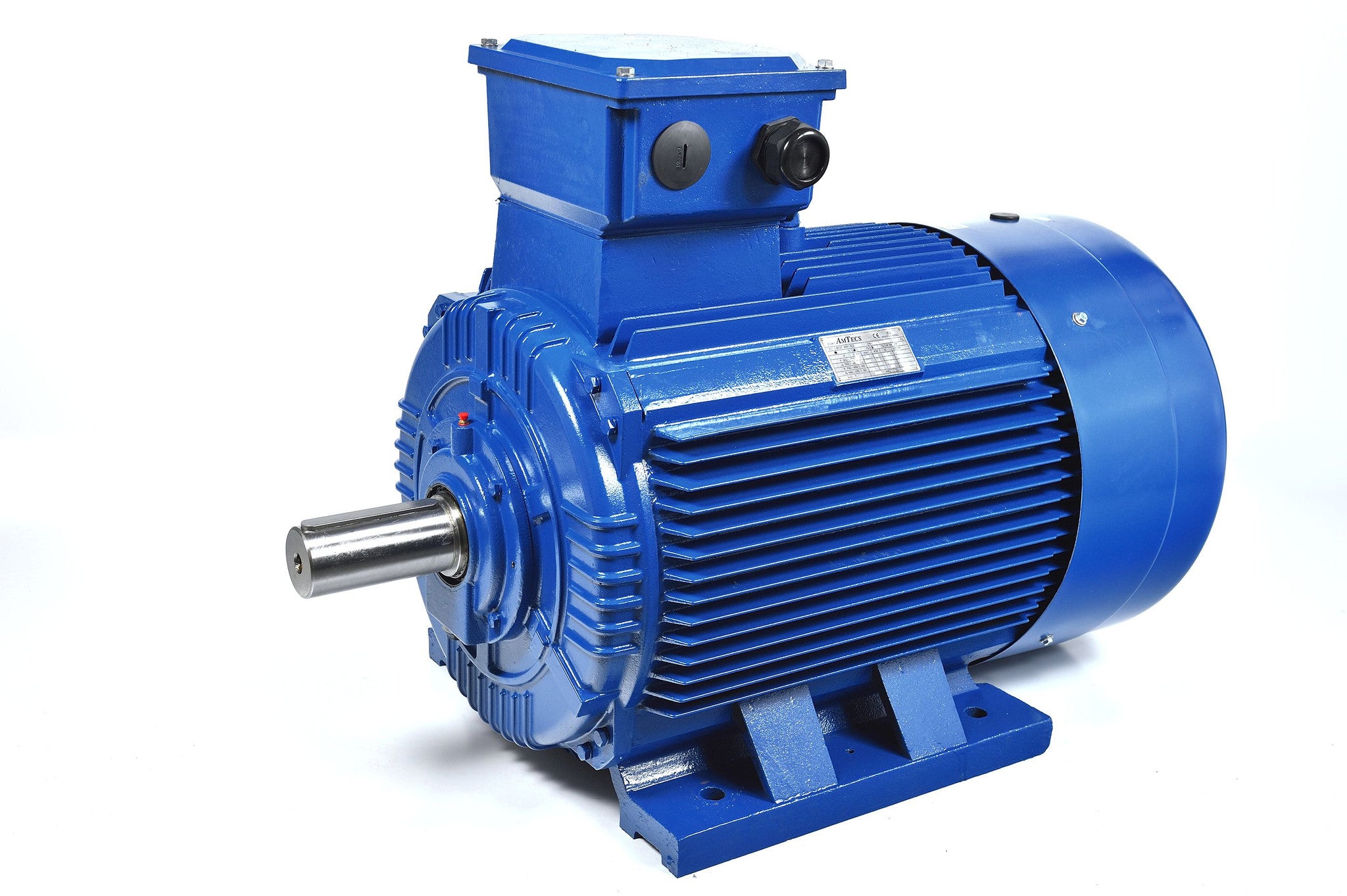

90.0kW Three Phase Motor 2 Pole (3000RPM) 280M Frame
Description
Type: |
Three Phase IE3 Efficiency Motors |
Power: |
90.0kW |
Speed: |
2 Pole (3000 RPM) |
Construction: |
High Quality Cast Iron Construction |
Efficiency: |
IE3 (In line with ECO Design Rule 2019/1781/) |
Voltage: |
400/690V 3Ph 50Hz (Also suitable for use at 60Hz) |
Shaft Diameter: |
65mm |
Shaft Length: |
140mm |
Keyway: |
18mm |
Frame Size: |
280 Frame (from base of foot to centre of shaft= 280mm) |
Warranty Period |
12 Months |
Other Features |
Terminal Box to Top High Quality NSK Bearings Made to IEC Standards |
Other Services (Price on Request) |
Shaft Modifications Flange Modifications Special Voltages Thermistors Fitting Service Anti-Con Heaters Fitting Service Increased IP Rating
** Please contact us for any other requirements you may have. |
